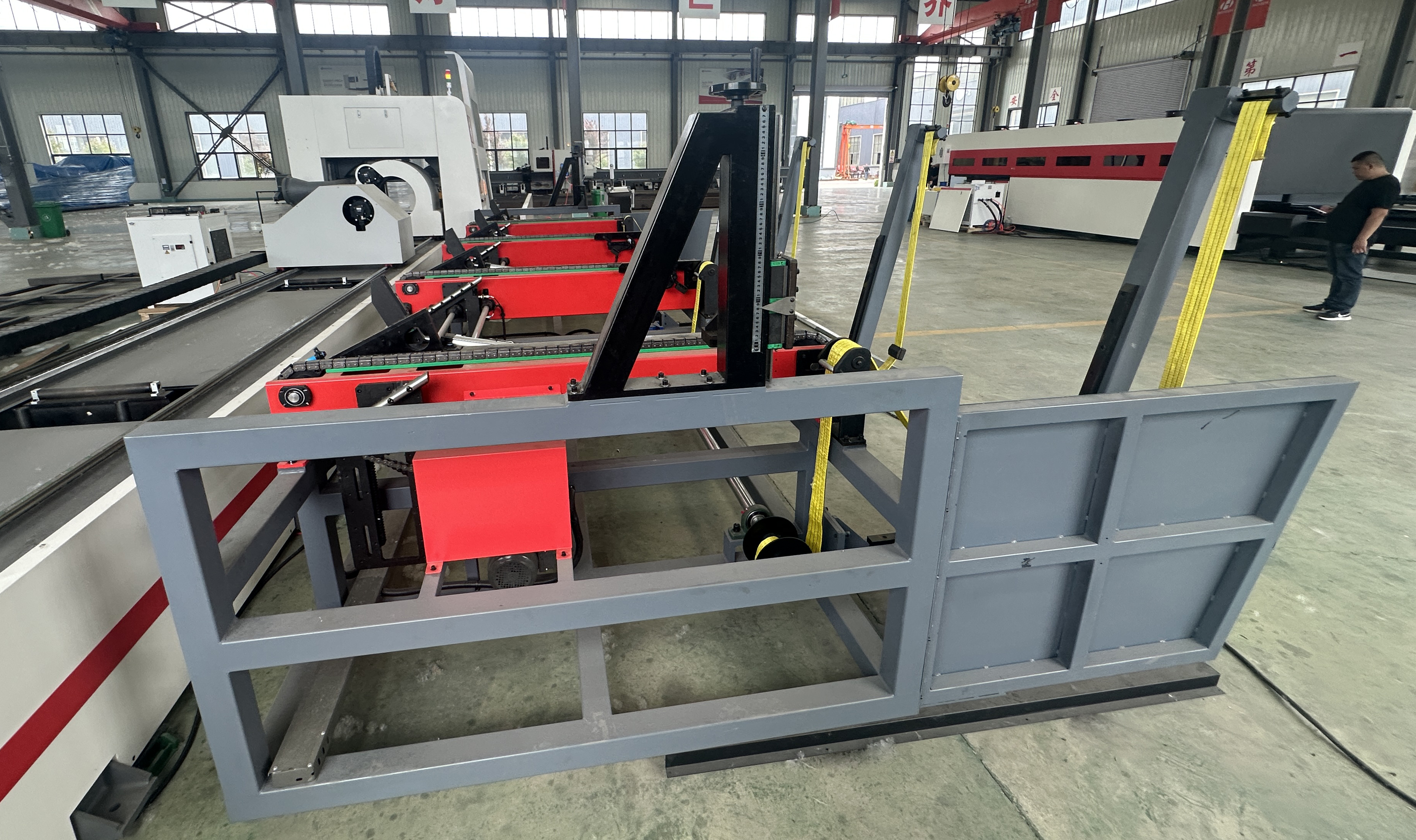

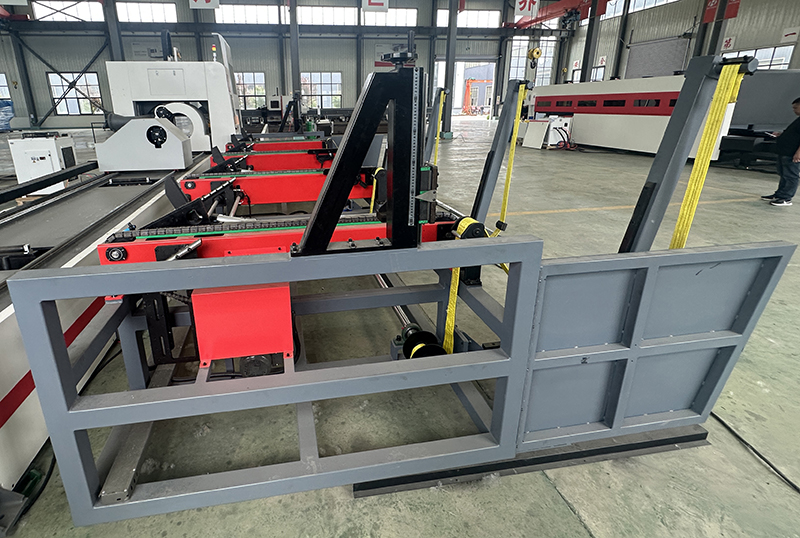

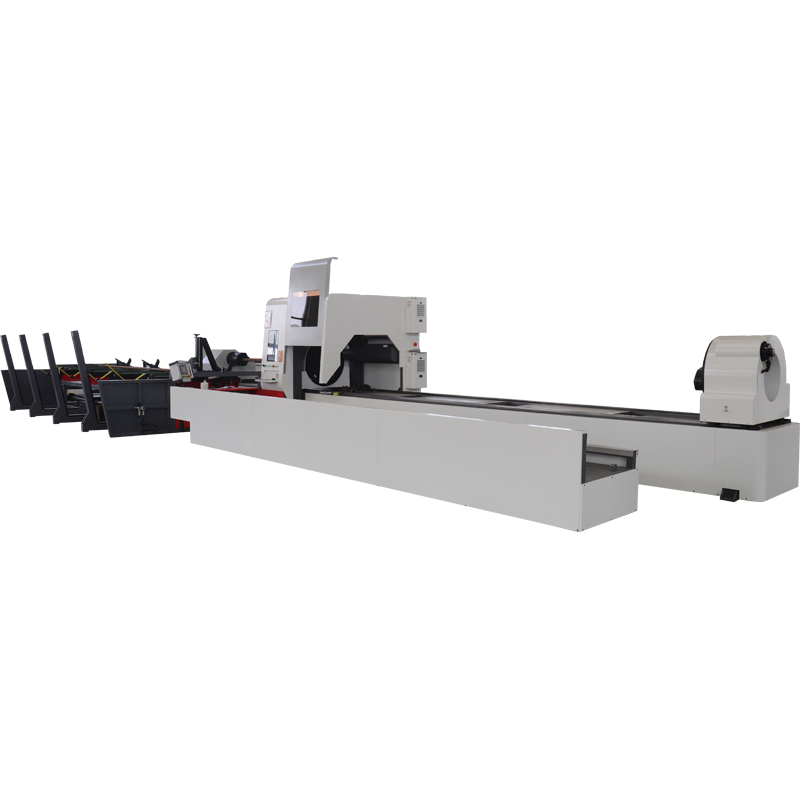

Fully Automatic Servo Control Loading And Unloading System
It can realize the smooth loading and unloading of heavy pipes with different lengths, sizes and shapes, reduce the scraping between work pieces, seamlessly connect with the equipment, and achieve semi-automatic or fully automatic production with the machine host, so as to shorten the working time and improve the working efficiency.

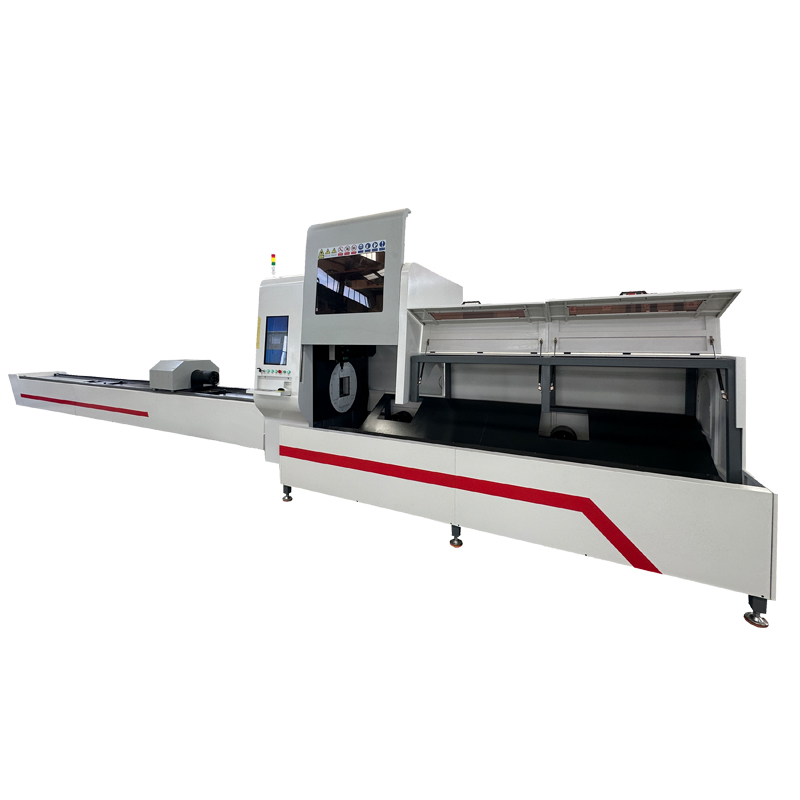

Integrated High Rigidity And High Precision Cast Iron Pneumatic Chuck
With higher cutting accuracy, stability and shock absorption of the machine tool, it can suppress the huge vibration generated by the cutting process of super long and overweight steel pipes and avoid laser cutting defects; The machining accuracy of small holes reaches 0.1mm, which completely solves the problem of non-circular cutting of small holes in heavy pipes.
Technical parameters
| Item | parameters |
| Model |
| T360 |
| CNC System |
| FSCUT |
| Specification | Power | 3000W、6000W、12000W |
| Size | 19.3m×6.5m×2.8m |
| Weight | Approx.23T |
| Material | Type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
| Diameter | Φ20mm-Φ360mm |
| Loading Capacity | 5000mm-12000mm |
| Unloading Capacity | 0-6000mm |
| Single Tube Max. Weight | 83.3Kg/m (1000Kg) |
| Operating Parameters | Total Power (reference) | 110KW |
| Phase Number/ Power Supply Rating/ Voltage Frequency | 3/380V/50Hz, Voltage Fluctuation<10% |
| Working Air Source | 0.5-0.8MPa |
| Processing Area | Working Area (machine tool) | Y 0-12200mm
X 0-800mm
Z 0-350mm |
| C1/C2 Axis | n*360° |
| Positioning Accuracy | X/Y Positioning Accuracy | ±0.05mm/500mm |
| X/Y Repeat Positioning Accuracy | ±0.05mm |
