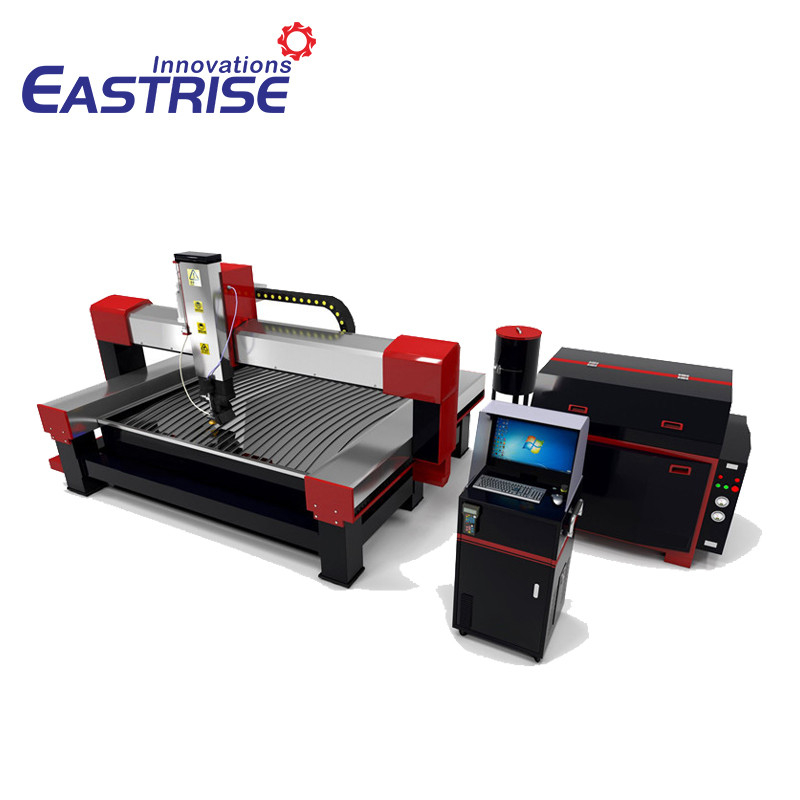

5 Axis 2015 Water Jet Cutting Machine

5 0 Reviews
Water jet Cutting Machine is an effective tool for any shape of artistic creation. The traditional cutting method is saw
cutting only in a row. When cutting the curves, the model should be made according to the size and then polished. Water jet Cutting Machine can cut any shape of models under the control of the CNC program.
Availability:
Quantity:
  • ERW-2015S

  • Eastrise

 5 Axis 2015 Water Jet Cutting Machine

water jet machine (9)

Application and advantages of waterjet cutting:

Waterjet Cutting Machine is an effective tool for any shape of artistic creation. The traditional cutting method is saw cutting only in a row. When cutting the curves, the model should be made according to the size and then polished. Waterjet Cutting Machine can cut any shape of models under the control of the CNC program.     1. Smooth cutting quality is perfect. 2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and water jet cutting can also make very complex puzzles and murals. 3. Cutting speed is fast, and product consistency and interchangeability are very good. 4. Drilling, cutting and forming can be done at once.   5. Improve the working environment and reduce the impact of dust and noise on the operator. 6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material. 7. It is the only machine for processing composite materials and fragile porcelain. 8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.


water jet machine (10)_副本_看图王

High pressure system specifications

Model

HZ30018

HZ38030

HZ42037

Max. Pressure

300Mpa

380Mpa

420Mpa

Continuous working pressure

260Mpa

340Mpa

380Mpa

Power

18KW

30KW

37KW

Maximum water flow

3.7L/min

3.7L/min

3.7L/min

Maximum nozzle diameter

0.33mm

0.33mm

0.33mm

Working power supply

380V/50HZ

water jet machine (11)_看图王


Technical parameters of gantry cutting platform

Model

2015S

2030S

3020S

2040S

2060S

3060S

X axis

2000mm

2000mm

3000mm

2000mm

2000mm

3000mm

Y axis

1500mm

3000mm

2000mm

4000mm

6000mm

6000mm

Z axis

150mm

150mm

150mm

150mm

150mm

150mm

Running speed

9000mm/min

Cutting accuracy

±0.1mm

control precision

±0.01mm

Repeat accuracy

±0.05mm


water jet machine (13)

water jet machine (14)

Description of five-axis :

The AB 5-axis water jet cutter is a solution for small angle bevel cutting in stone industry and metal high-precision vertical cutting. The cross structure of the two axis is sensitive in response and fast in motion. It can realize plane 3D cutting less than 8°, and all of the path programming and angle change are completed intelligently and automatically which is convenient and quick and has a very high cost performance ratio.

The AC five-axis water jet cutter is a professional solution for large angle bevel cutting, continuous change of cutting angle and high precision cutting. The larger thermal stiffness structure and precise transmission system make the dynamic error less than or equal to plus or minus 0.05mm. With automatic programming and intelligent dynamic differential compensation, more complex plane 3D cutting can be achieved.


water jet machine (3)_副本



Application of 2015 2030 2040 Water jet Cutting Machine for glass, metal, stone, and rubber, plastic, etc.




Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
