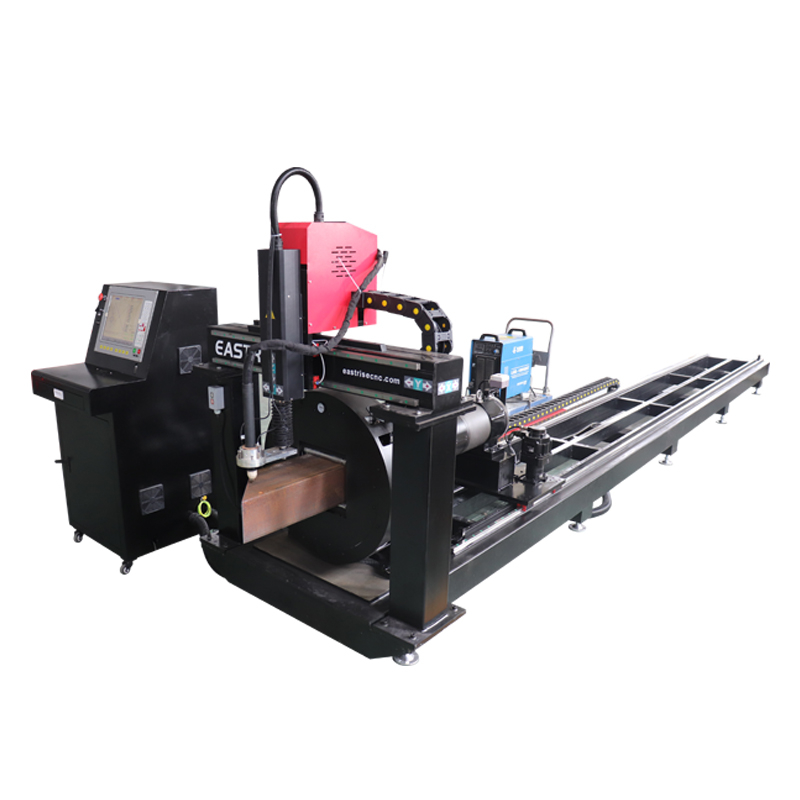

Circular \Rectangle tube\H Shape\ C Shape\L Shape Round and Square Tube 4-axis CNC Plasma Cutting Machine for sale
Advantage
4 axis pipe cutting machine can cut different shapes on irregular pipes automatically after data be inputted to control system.This machine is widely used for pipeline cutting in industries such as construction,Chemical, shipbuilding, machinery engineering, metallurgy, electricity etc.
Feature
1.Use FangLing Four Axis Cutting Control System
2.TubeMaster software is a sophisticated tube nesting software for intersecting line calculation, nesting and cutting code. Users only need to import the parts and the software can automatically calculate cutting line and generate cutting code.
Circular Tube:
Rectangle Tube:
H Shape:
C Shape:
L Shape:
3.Pneumatic chuck
4.Large raw materials library is expandable (including GB, JIS, and ASTM).
Samples
Technical parameters
Raw material | Circular tube | C shape | Rectangular tube | L shape | H shape |
Nesting software | TubeMaster nesting software | ||||
CNC system | Shanghai FL Control system | ||||
Driving system | Servo motor | ||||
reducer | NEWSTART | ||||
Cutting diameter | Square tube 280x280mm Round tube 300x300mm | ||||
Pipe length | 50mm-15000mm | ||||
Axis quantity | non-bevel cutting:4-axis |
