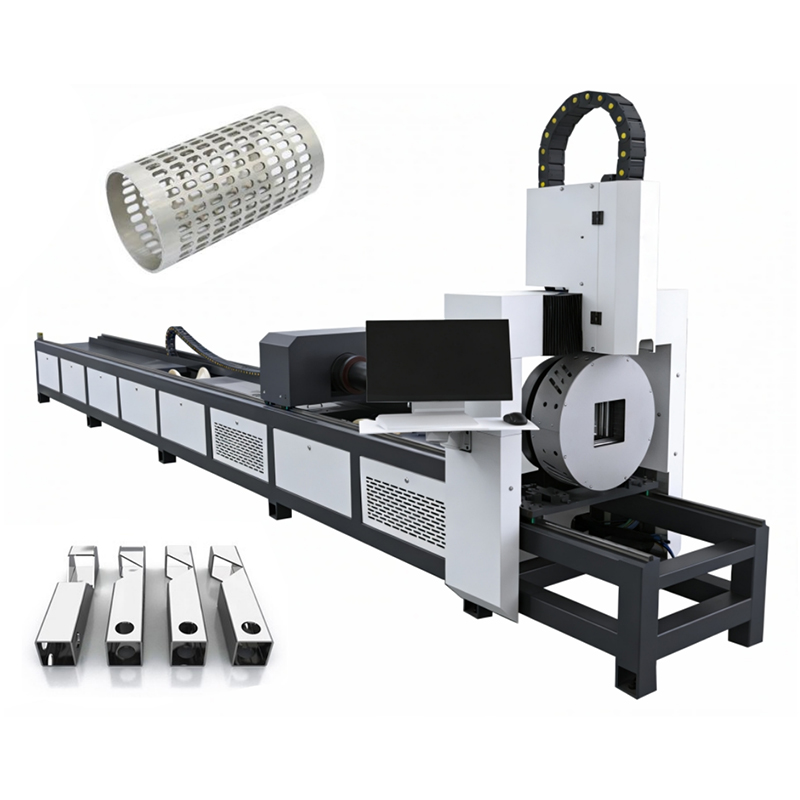

Pneumatic CNC Fiber Laser Tube Cutting Machine with Overhang Cutting Function

Product Overview

The EASTRISE CNC Pneumatic Fiber Laser Tube Cutting Machine with Overhang Cutting Function is a high-performance and cost-effective solution designed for precision cutting of round tubes, square tubes, rectangular tubes, and various metal profiles.

Equipped with an advanced pneumatic self-centering chuck system and an innovative overhang cutting design, this machine delivers excellent cutting accuracy, high processing efficiency, and minimal material waste.

One of its key advantages is the Overhang Cutting Function, which enables a minimum tailing length of approximately 40 mm under suitable processing conditions. This feature significantly reduces leftover material and helps manufacturers maximize material utilization.

With laser power options ranging from 1500W to 6000W, this machine is suitable for a wide range of metal tube cutting applications.

Key Features

1. Advanced Overhang Cutting Function

The innovative overhang cutting design allows the cutting head to process tubes beyond the conventional chuck positioning range.

• Minimum tailing length: approximately 40 mm

• Reduces material waste

• Improves raw material utilization

• Lowers production costs

• Suitable for continuous tube cutting operations

2. Pneumatic Self-Centering Chuck

The machine features pneumatic chucks designed for reliable clamping and accurate positioning.

• Automatic self-centering

• High clamping force

• Stable tube positioning

• Suitable for round and square tubes

• Reduced manual adjustment requirements

3. High-Precision Laser Cutting

The fiber laser cutting system delivers precise and efficient processing of various metal tubes.

• Repeat positioning accuracy: ±0.1 mm

• Smooth cutting performance

• High processing efficiency

• Suitable for complex cutting patterns

• Reduced secondary processing requirements

4. Multiple Laser Power Options

Available laser power configurations include:

1500W / 2000W / 3000W / 6000W

Customers can select the appropriate laser power according to material type, wall thickness, and production requirements.

5. Heavy-Duty Machine Structure

The machine adopts a rigid industrial structure designed to provide reliable performance during continuous operation.

• Stable machine bed

• Durable mechanical components

• Reliable linear motion system

• Suitable for industrial production

• Easy operation and maintenance

Applications

The EASTRISE CNC Fiber Laser Tube Cutting Machine is widely used in various metal fabrication industries.

Applicable Materials:

• Carbon Steel

• Stainless Steel

• Galvanized Steel

• Aluminum

• Other compatible metal tubes

Applicable Tube Shapes:

• Round Tubes

• Square Tubes

• Rectangular Tubes

• Compatible Metal Profiles

Application Industries:

• Metal Furniture Manufacturing

• Automotive Parts Manufacturing

• Construction and Steel Structures

• Fitness Equipment Manufacturing

• Agricultural Machinery

• Metal Fabrication Workshops

• Industrial Pipe Processing

• Machinery Manufacturing

Technical Specifications

Note: Cutting capacity, minimum tailing length, and available tube dimensions depend on the selected chuck configuration, material specifications, and actual processing conditions.

Why Choose EASTRISE CNC?

EASTRISE CNC provides professional CNC laser cutting solutions for metal fabrication businesses worldwide.

Our fiber laser tube cutting machines combine precision, efficiency, and cost-effective performance to help customers improve productivity and reduce manufacturing costs.

The overhang cutting function is especially beneficial for manufacturers looking to minimize tube waste and improve material utilization.

Contact EASTRISE CNC today to learn more about machine configurations, pricing, and customized tube cutting solutions.
