Advantages of the Panel Bender
1.
Cost and efficiency optimization: The panel bender requires no mold or upper and lower tool replacement, effectively reducing operational, production and management costs while significantly improving overall production efficiency.
2. High bending precision: Benefiting from its optimized mechanical structure and bending knife dynamic compensation technology, it achieves precise bending with an angular accuracy of ±0.5° and a bending parallelism of ±0.1 mm/m.
3. Unique forming capability and structural optimization: Its exclusive bending mechanism supports special bending processes unavailable on conventional bending equipment. It simplifies product structures drastically — for example, replacing the traditional 8-piece welded and bent box structure with a single integrated sheet. This reduces part weight, shortens processing and design cycles, lowers manufacturing costs, and enhances product market competitiveness.
4. Superior workpiece appearance quality: Featuring bottom-up bending, it avoids surface indentations on high-grade, long-size workpieces such as mirror stainless steel with finished ends, greatly improving the surface aesthetics of bent products.
5. Fast processing speed: Continuous and automatic sheet feeding and rotation greatly shorten machining cycles compared with traditional bending centers, especially for box-shaped parts, delivering prominent efficiency improvements.
6. Short setup time: Intelligent software functions enable automatic sheet compactor adjustment and bending program generation, substantially reducing pre-production preparation time.
7. Wide production adaptability: It performs excellently for both multi-variety small-batch production and single-product mass production, fully meeting the diverse processing needs of sheet metal enterprises.

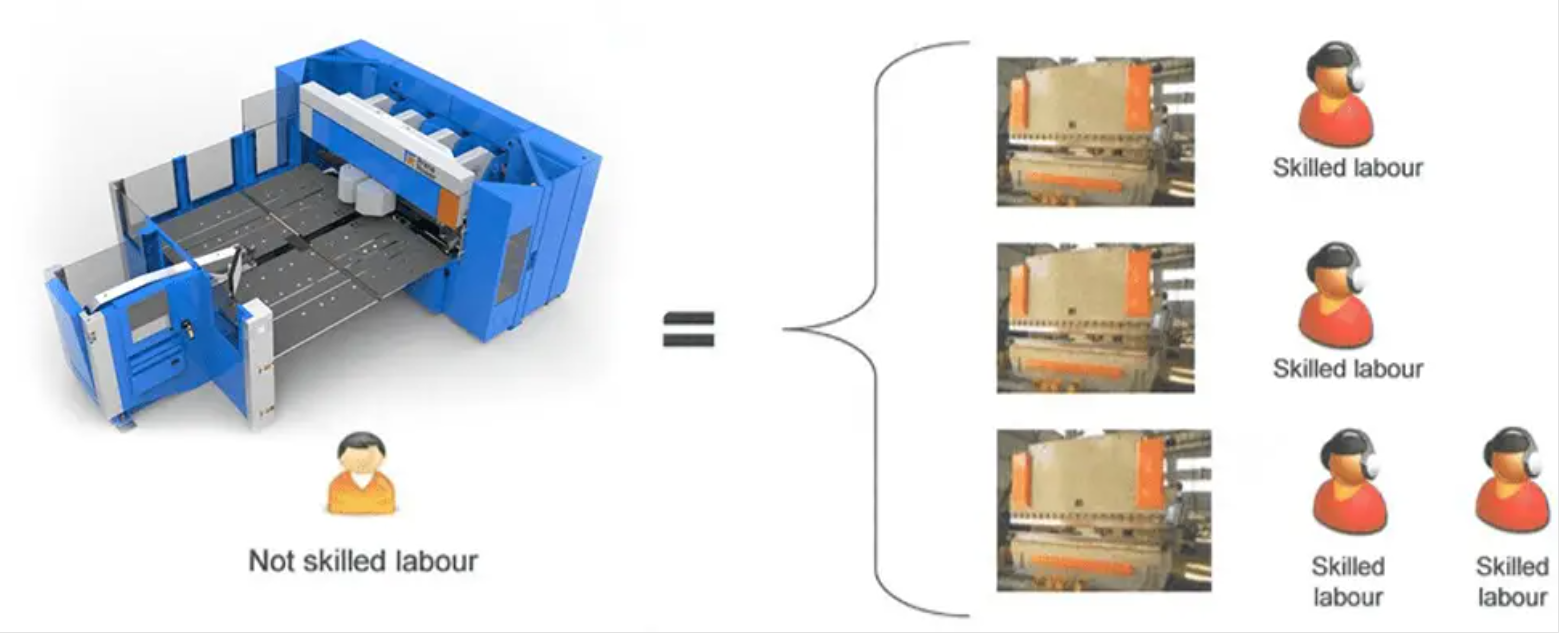

Labor cost reduction
Traditional press brakes rely on experienced and skilled workers to monitor and control the entire bending process. In contrast, the panel bender only needs single-person operation with no professional skills required, as all bending procedures are completed automatically by the machine. This cuts labor recruitment and staffing costs and improves production flexibility with accessible operation for various operators.
