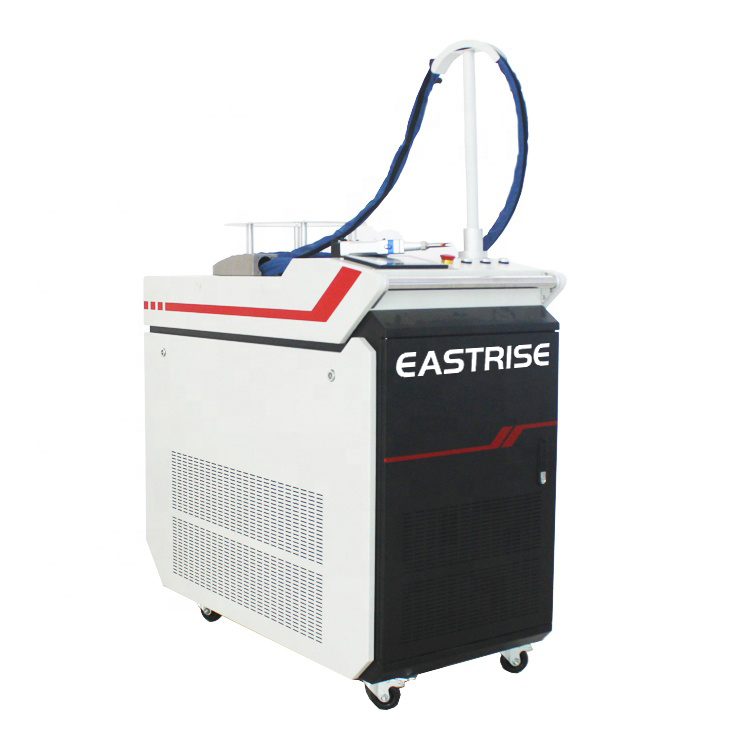

Handheld 1000W Fiber Laser Welding Machine for Metal

5 0 Reviews
Hand-held laser welding equipment uses the latest generation of laser sources. It is equipped with a special, laser-developed laser discharge head designed by the manufacturer for faster and easier operation.
  • ER-1000H

  • Eastrise

Handheld 1000W 1500W Fiber Laser Welding Machine for Metal

laser welding machine (1)

Handheld fiber laser welding machine is a new generation of laser welding equipment, belongs to the non-contact welding, the operation process does not need to be pressurised. The working principle is to irradiate the high energy intensity laser beam directly on the surface of the material, through the interaction between the laser and the material, so that the internal melting of the material, and then cooled and crystallised to form a weld.

Handheld instead of the previous fixed optical path, flexible and convenient, long welding distance, but also makes the laser welding in the outdoor operation becomes possible.

Handheld welding is mainly aimed at carrying out long-distance, large workpiece laser welding, to overcome the limitations of the workbench travelling space, welding, heat-affected area is small, will not lead to deformation of the work, blackening, the back side of the traces of the problem.

In addition, the welding depth is large, the welding is firm, the dissolution is sufficient, not only can achieve heat conduction welding, but also continuous deep fusion welding, spot welding, butt welding, stack welding, sealing welding, seam welding and so on.

Advantages of handheld fiber laser welding machine

1. A new generation of all-in-one cabinet, integrating laser, chiller, software control, etc. It has the advantages of small footprint, easy to move, and strong functionality;

2. Handheld oscillating welding head equipped with 5-10m original optical fibre, flexible and convenient;

3. Handheld operation mode, assembled with special laser processing head, can achieve any part of the workpiece at any angle welding;

4. Match a variety of laser sources, applicable to a variety of process requirements of the workpiece, welding a shape, basic deformation-free, to meet the requirements of high-quality products;

5. Beautiful welding seam, no welding scar, no discolouration, no need for subsequent grinding;

6. Welding firmly, weld strength reaches or even exceeds the base material itself;

7. Suitable for welding, stack welding, internal and external angle welding, arc welding, irregular shape welding, etc;

8. The whole set of equipment is highly functional and meets the ergonomic design, applicable to a variety of working environment scenarios;

9. Proprietary laser safety operation protection function, to protect the safety of the operator during the work;

10. The operation is simple and easy to learn quickly, the operator's technical threshold is not high, saving labour costs.

Fiber Laser Welding

Details of the Handheld Laser Welding Gun

fiber laser welding machine

Characteristics of handheld fiber laser welding machine

Safety - it has the laser beam output control ,Only when the welding head touches the metal surface,the machine can work,It can meet the CE and FDA safety standard,level IV

Low consumption - Its electricity consumption is only 1-2 degree in one hour,That's other old methiod cannot compete.

Performance - the laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat .

Convenience - Portable Handled welding head is suitable for holding .the machine only have one box,which canbe moved easily ,No matter how big of your article,it can do the work,The standard welding head fiber is 5M long ,we could offer 10-15M customized.

Small dimension - Theintegrative design makes the machine dimension small.It is suitable for all transportation ways,includes the express ,by air,by sea ,by train.

Handheld Fiber Laser Welding Projects

laser welding machine (3)

Handheld Fiber Laser Welding Machine Technical parameters

Laser source MAX/Raycus
Voltage 220V
Cable length standard 10m,possible :15m
Laser power 1000W, 1500W
Wavelength 1064nm
Speed range 0 ~ 120mm/s
Water cooler industrial thermostatic water chiller
Working environment temperature 15 ~ 35 * C
Welding thickness / depth 0.5-3mm
Welding beam 0.5mm
Weight  400KGS
Case dimensions 1.35*0.78*1.25m and 0.58*0.38*0.84m


laser welding machine


laser welding machine
