ERP-2040
Eastrise

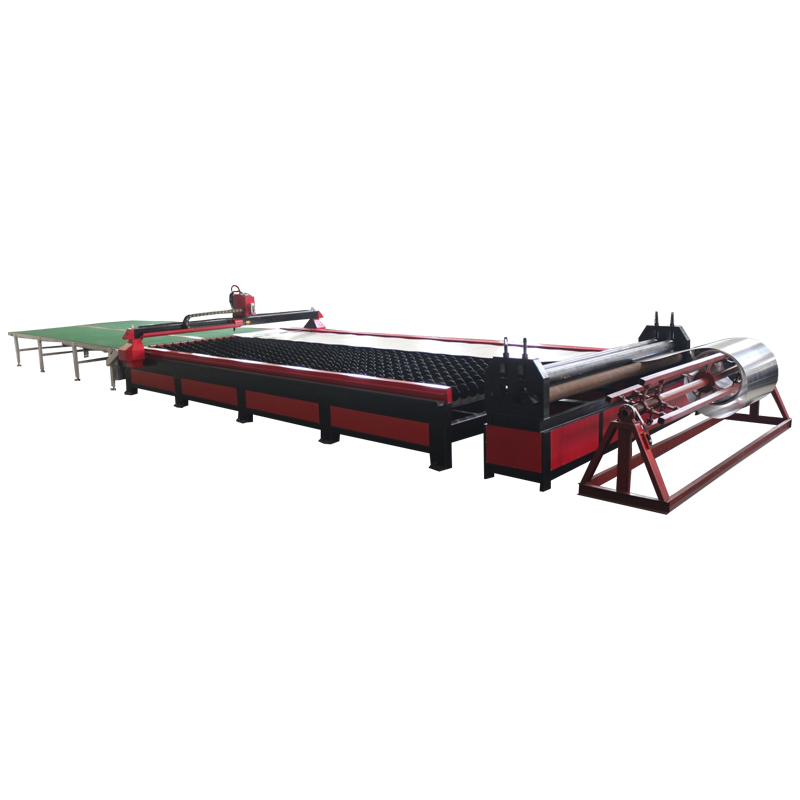

Metal Plasma Cutting Machine With Automatic Coil Feeding System For SS CS MS
Features of Metal Plasma Cutting Machine With Automatic Coil Feeding System
The automatic design of the whole process, which is from loading-uncoiling-leveling-cutting saves labor, realizes the net cutting of coil materials, and improves the utilization of sheet materials.
Advantage
It can realize the uncoiling, leveling, cutting and unloading of coiled materials at one time to ensure the continuity of processing and production and improve production efficiency. The production line can realize batch processing, reduce labor intensity and save manpower.
The machine has good dynamic performance, can achieve high cutting efficiency, and is equipped with a professional CNC system, which is powerful, user-friendly and easy to understand.
It is mainly used for cutting and forming of carbon steel, stainless steel, alloy steel, spring steel, galvanized sheet, copper sheet, aluminum sheet and other metal plates, and is the first choice for processing metal materials.
Automatic feeding table
The leveling system
After the coil is uncoiled, the plate is leveled by the leveling system, and the stress of the plate during the leveling process is eliminated, so that the plate is smoother and a better cutting experience is obtained.
Material receiving platform
The cutting workpiece is automatically sent to the front receiving platform and is manually sorted by belt conveyor
Application Material
Cold rolled coil, galvanized coil, stainless steel coil, aluminum coil
Technical parameters
Specifications | Parameters |
Working Area(X Y) | 2000*4000mm(Customized) |
Power source | Hypertherm/Huayuan plasma power supply |
Cutting Speed | 0-16000 mm/min |
Material thickness | 0.5-2mm |
Software support | FASTCAM/STARCAM plasma software |
Instruction format | G code |
Working table | Automatic feeding table |
Working pressure | 0.3-0.7Mpa |
Working voltage | 3Phase 380V/60HZ |
Machining
Testing
Exhibition
Certificate
